Product Description
Item Specifics
Product Details
Item Type: Racing Drone Frame

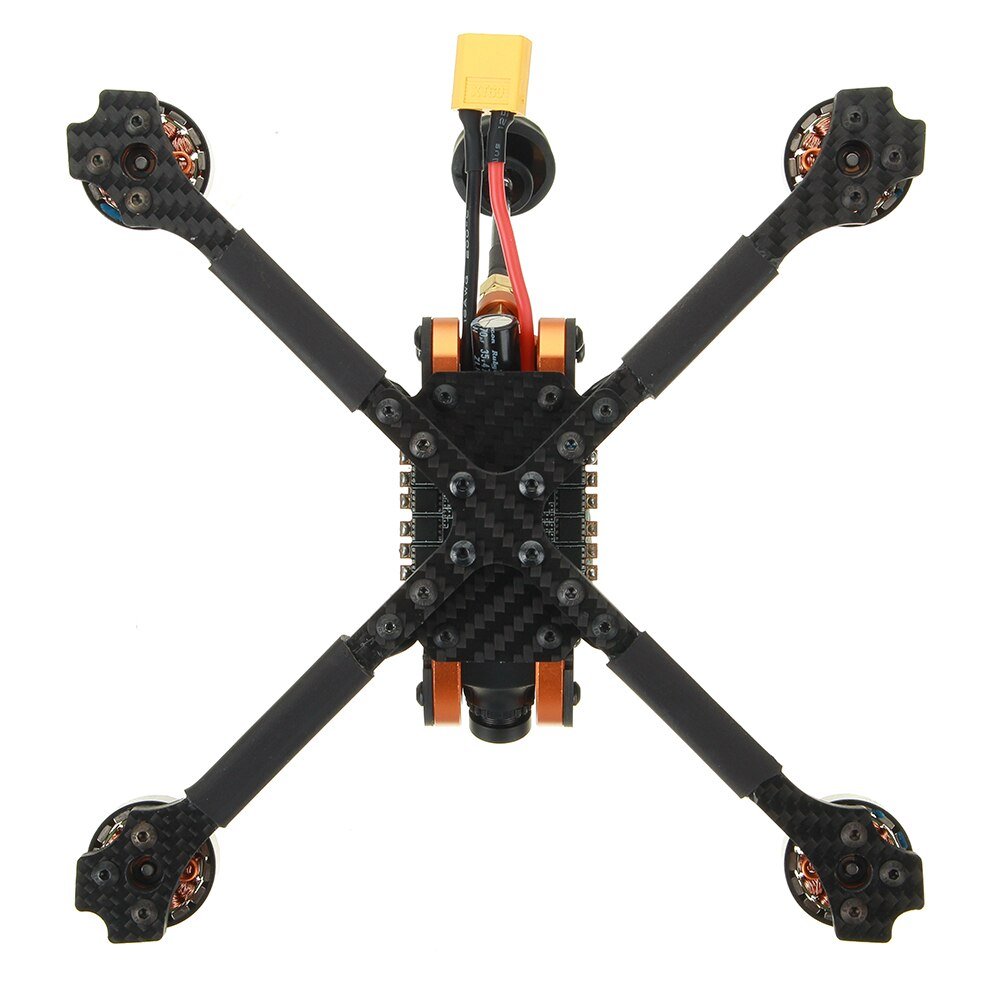

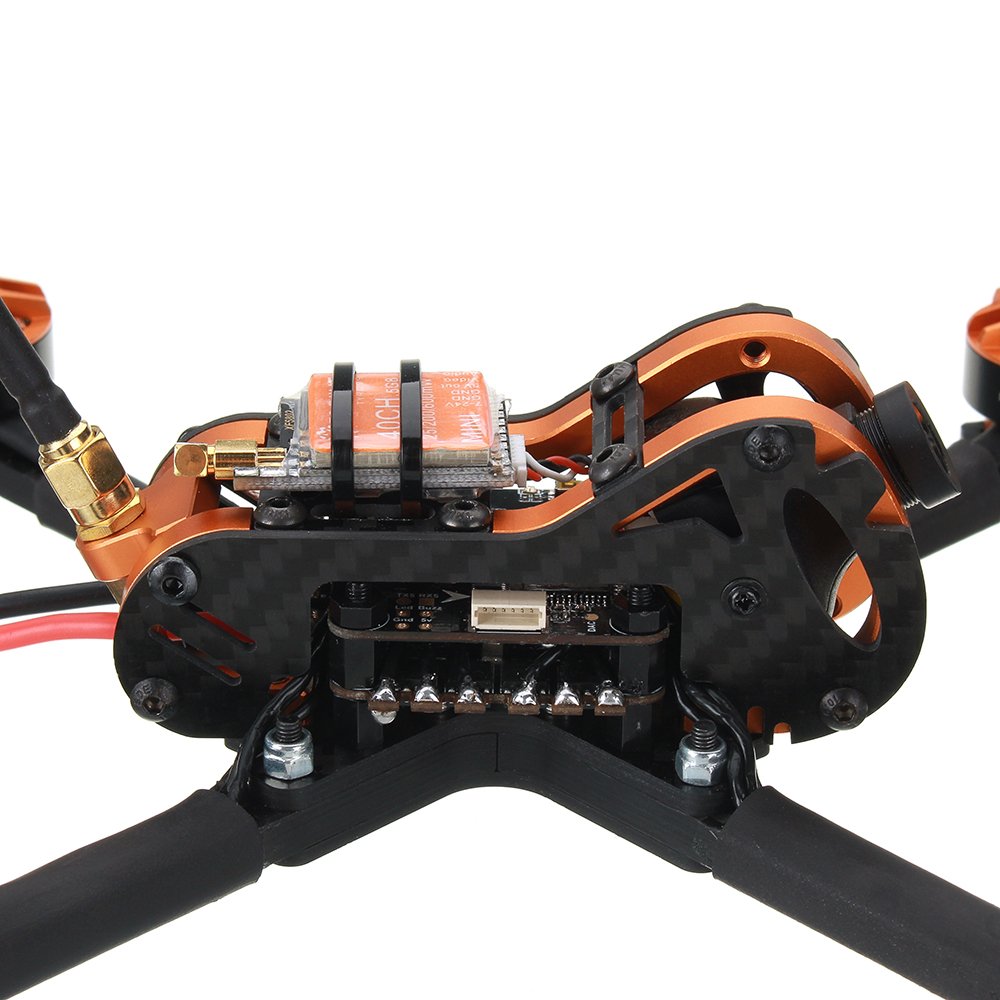

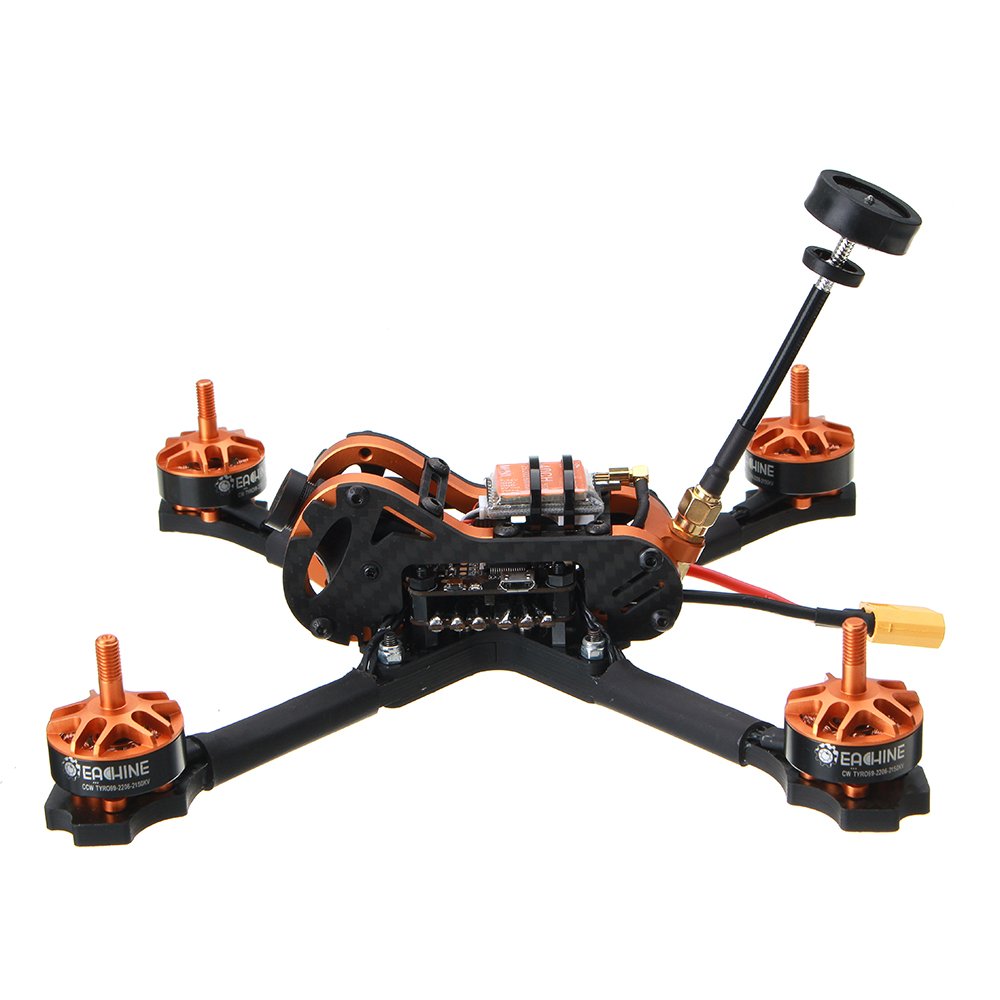

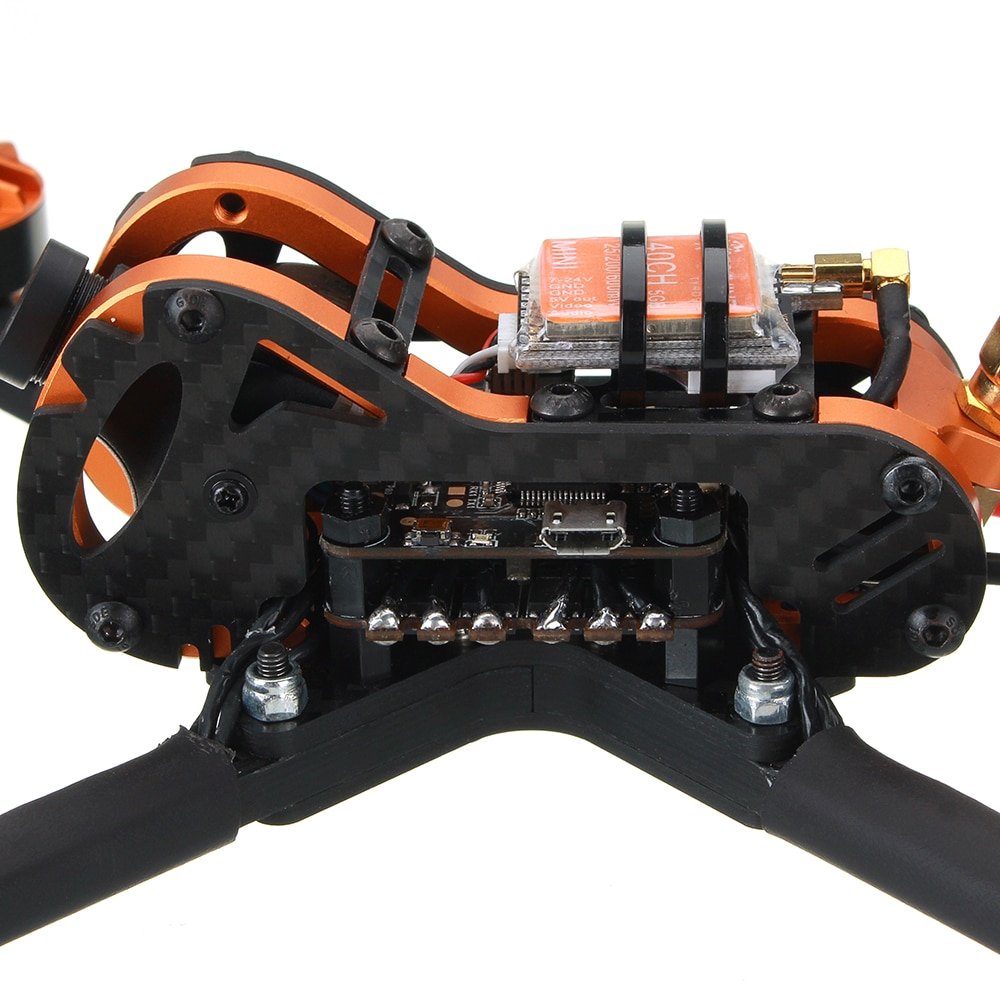

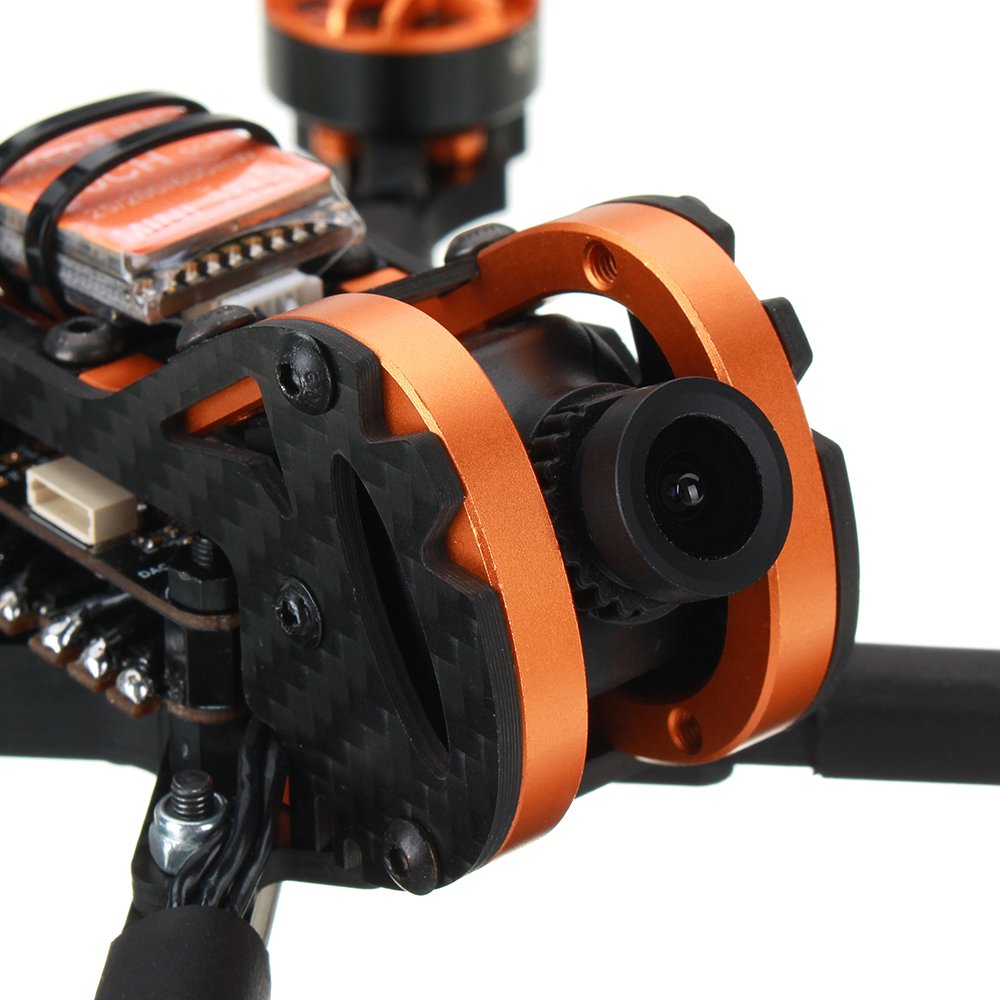

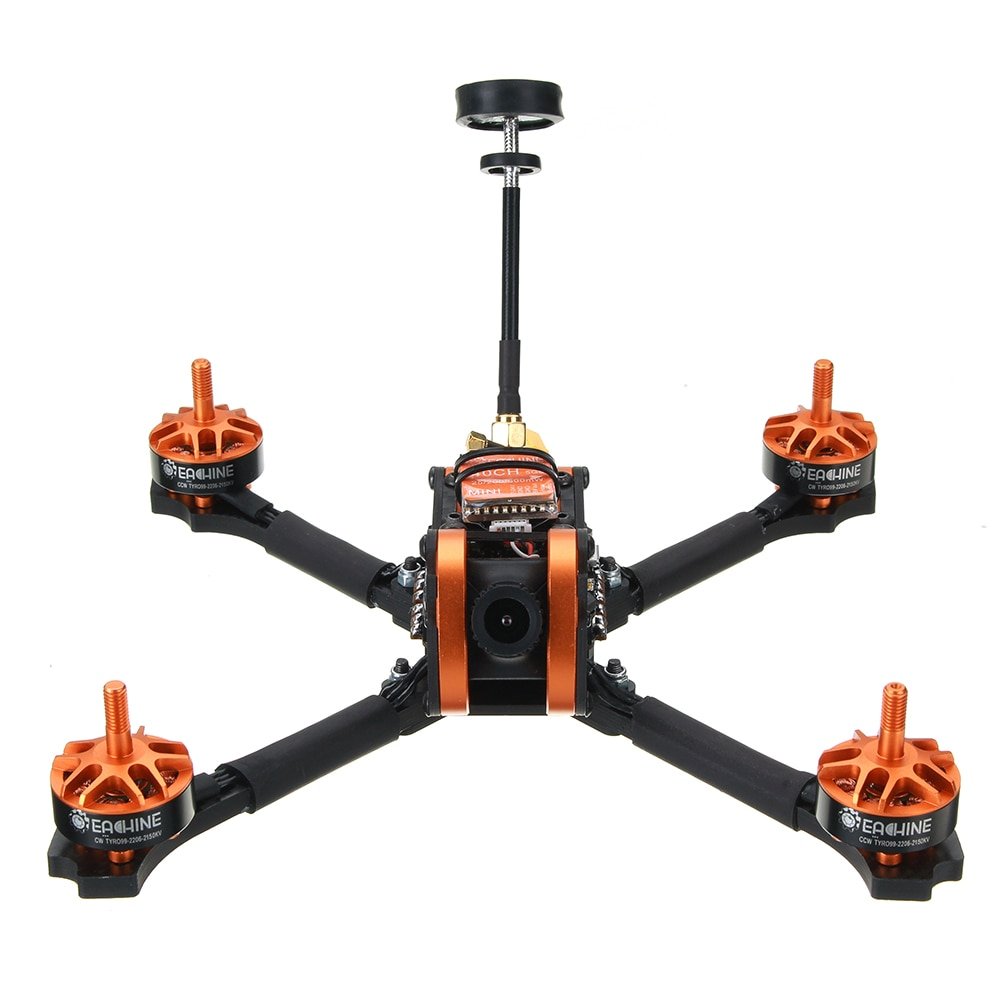

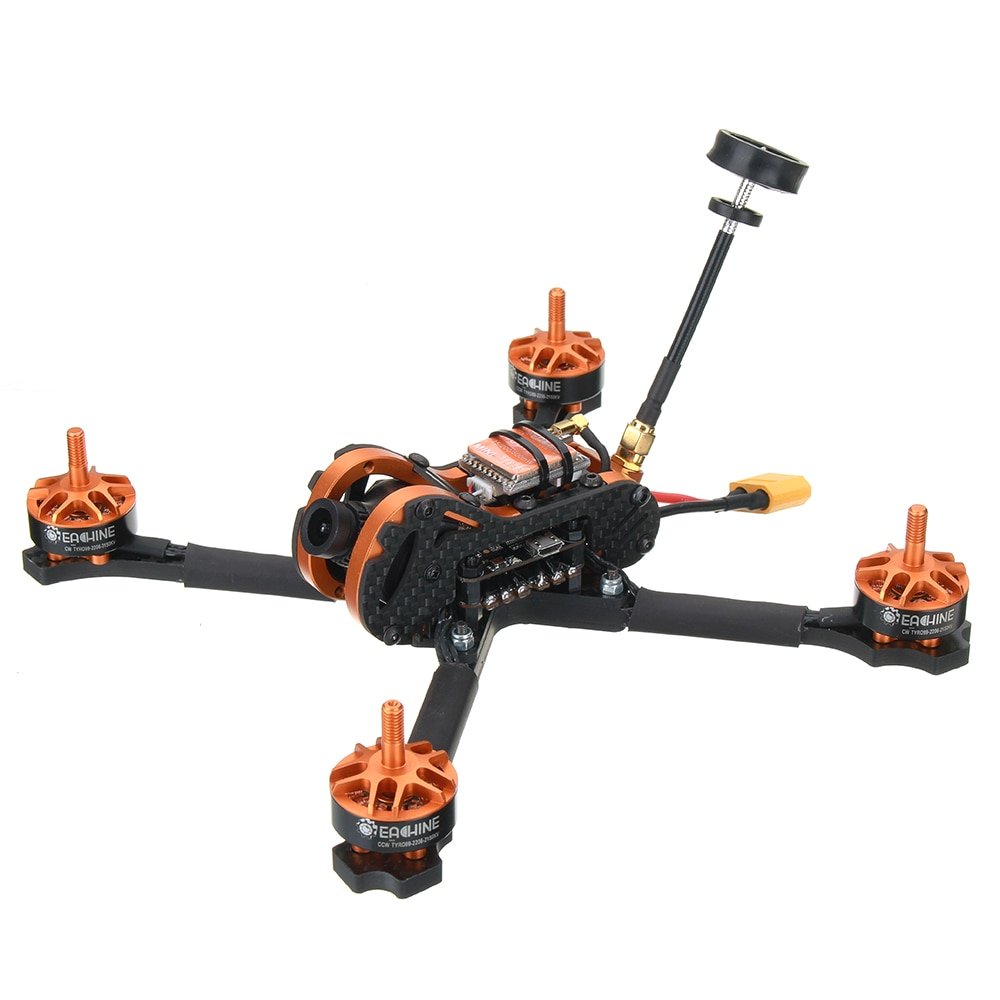

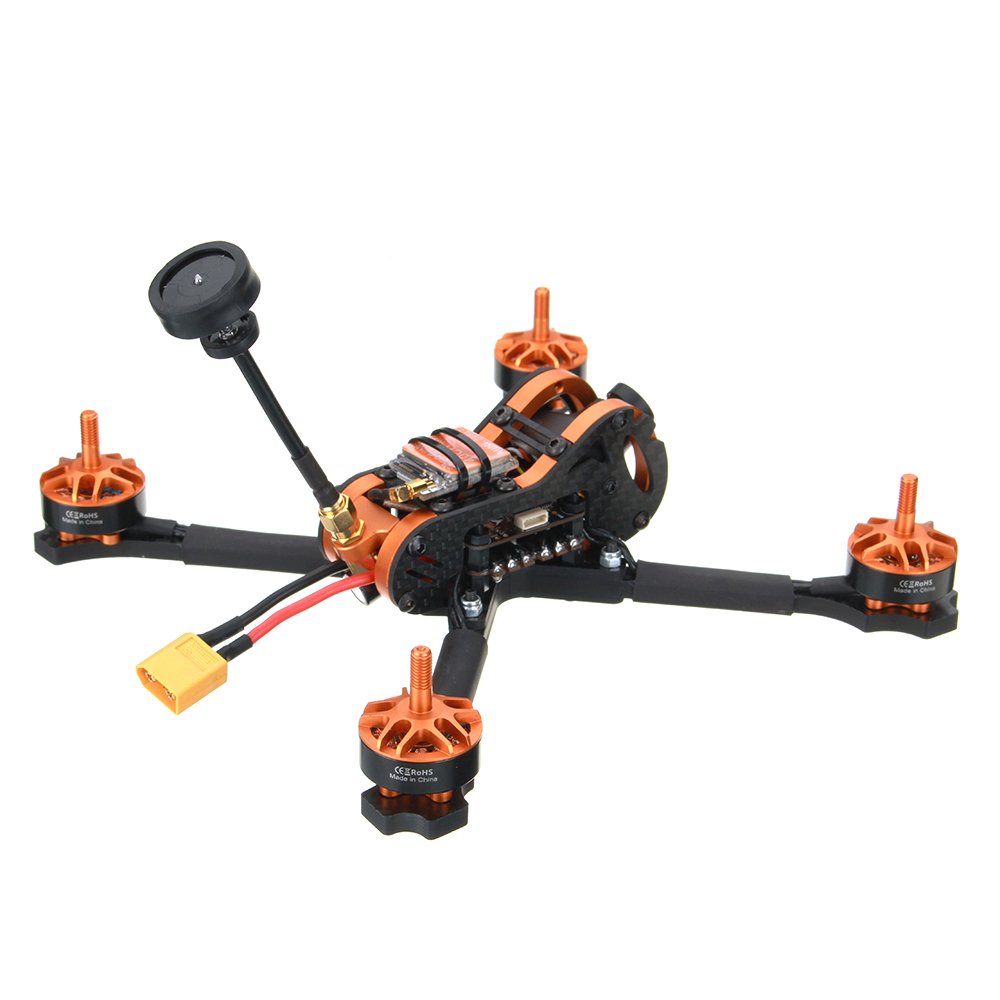

![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")

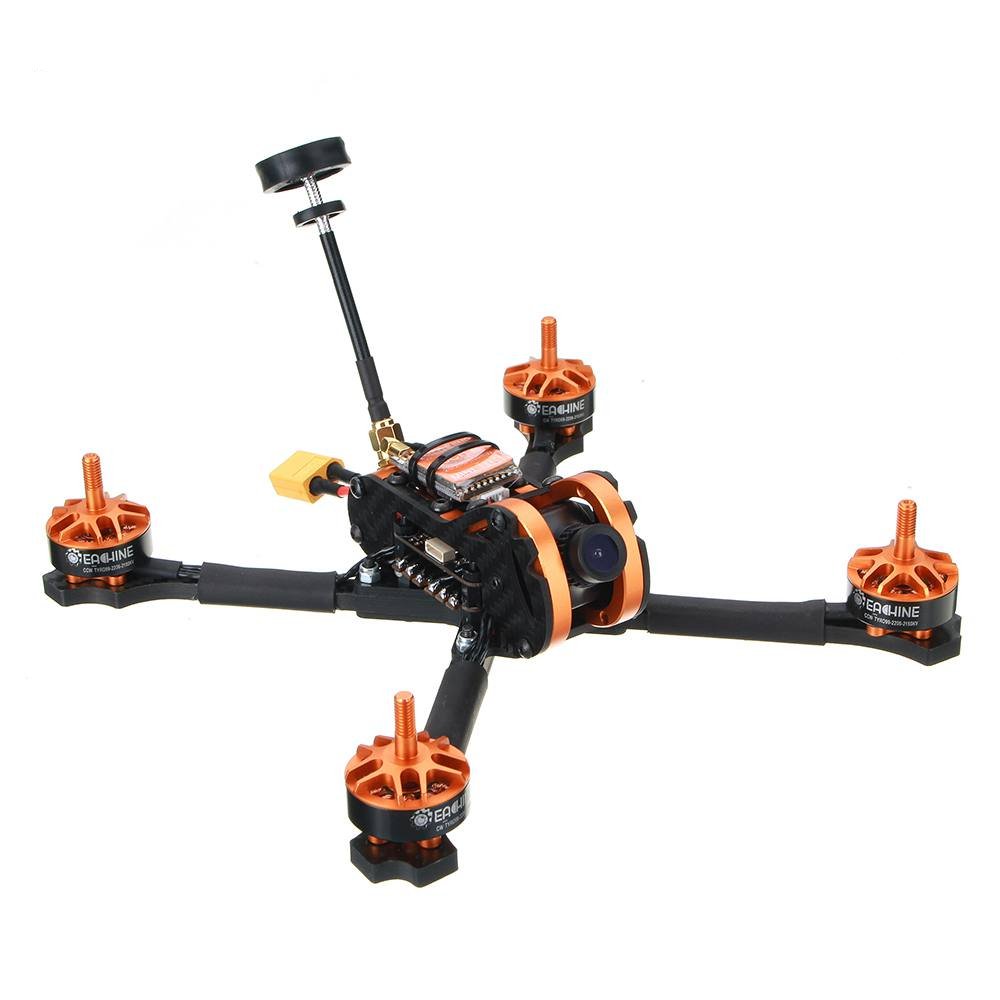

![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
![DIY Unassembled 700TVL Camera FPV Racing Drone]( "DIY Unassembled 700TVL Camera FPV Racing Drone")
- Wheelbase: 210 mm / 8.27 inch
- Frame arm thickness: 5 mm / 0.20 inch
- Bottom plate thickness: 2 mm / 0.08 inch
- Side plate thickness: 2 mm / 0.08 inch
- Motor KV: 2150RPM/V
- Idle current (Io/10V): 1.26A
- Lipo cell: 3-5S
- Max continuous current: 31A
- Max continuous power: 496W
- Max thrust: 1050g (4S/5″)
- Configuration: 12N/14P
- Motor resistance (RM): 0.0572 Ω
- Stator diameter: 22 mm / 0.87 inch
- Stator thickness: 6 mm / 0.24 inch
- Motor diameter: 27.7 mm / 1.09 inch
- Motor body length: 19.2 mm / 0.76 inch
- Overall shaft length: 34.2 mm / 1.35 inch
- Prop adapter shaft: M5
- Bolt holes spacing: 16 mm / 0.63 inch
- Bolt thread: M3
- Propeller: 5-6 inch
- Main control chip: STM32F405
- Sensor: ICM20602 6-axis
- Power supply: 5V
- Continuous current: 30A
- Peak Current: 40A(10S)
- Input voltage: 2-5S
- BEC: 5V 2A BEC
- Main control chip: 48Mhz EFM8BB2
- Firmware: BLHeli_S supports Dshot600
- MOS: 5*6
- Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
- Transmitting power: 0mW/25mW/200mW/600mW
- Full video format: NTSC /PAL
- Input voltage & power dissipation: 7V~24V, +12V/260mA@600mW
- Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)
- Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP)
- Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP)
- Signal system: PAL/NTSC switchable
- Resolution ratio(horizontal center): 700TVL
- Video output: 1.0Vp-p/75Ω
- Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB
- White balance: on/off optional
- Exposure mode: electron exposure
- Electronic shutter: 1/50(1/60) – 1/100000 S
- Gamma correction: 0.45/1.0
- Synchronization method: inter-sync
- Camera lens: standard 2.8mm
- Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V)
- Working current: 70mA (low power consumption)
- Working temperature: -20℃~-60℃
- Humidity: 0%~98%
- Recommend Battery: 3-5S

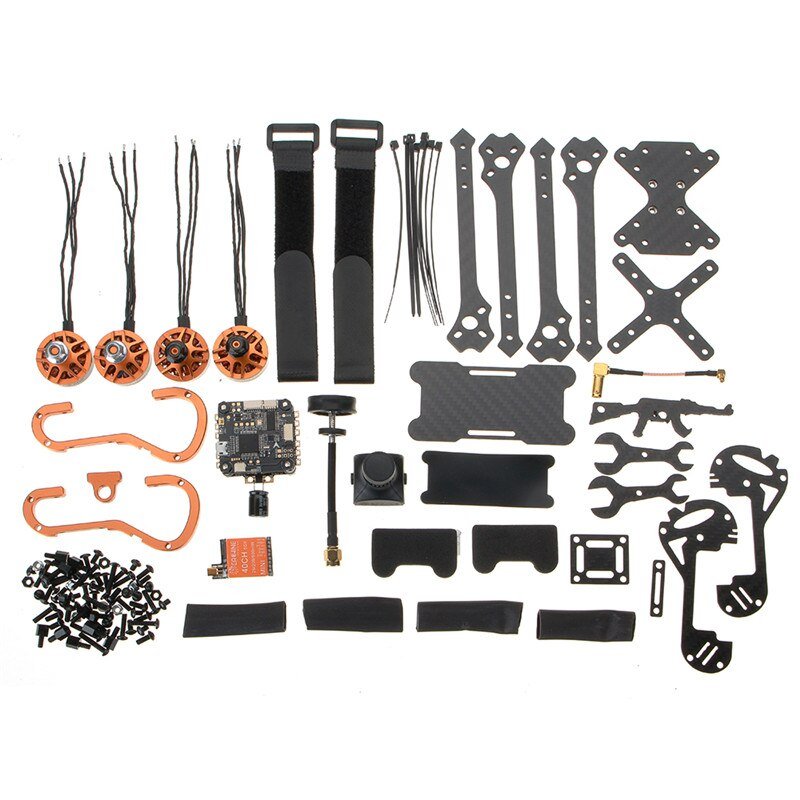

- 1 x 210mm frame kit
- 2 x 2206 2150KV brushless motors CW
- 2 x 2206 2150KV brushless motors CCW
- 1 x 4 IN 1 30A BLHeli_S ESC
- 1 x Customized F4 flight controller
- 1 x 700TVL CMOS camera
- 1 x 5.8G 40CH 0mw/25mw/200mw/600mw switchable VTX
- 2 x Battery straps
- 10 x Racerstar 5038 2 blade propellers CW
- 10 x Racerstar 5038 2 blade propellers CCW
Item Specifics
Item Specifics
Brand Name:
Eachine
Material:
Composite Material
Tool Supplies:
Assembled class
Remote Control Peripherals/Devices:
Starter
Use:
Vehicles & Remote Control Toys
Four-wheel Drive Attributes:
Assemblage
Technical parameters:
Value 10
Model Number:
Eachine Tyro99 210mm
For Vehicle Type:
Helicopters
Upgrade Parts/Accessories:
Frame
RC Parts & Accs:
Servo Accessories
