TCBWORTH LIPO BATTERY

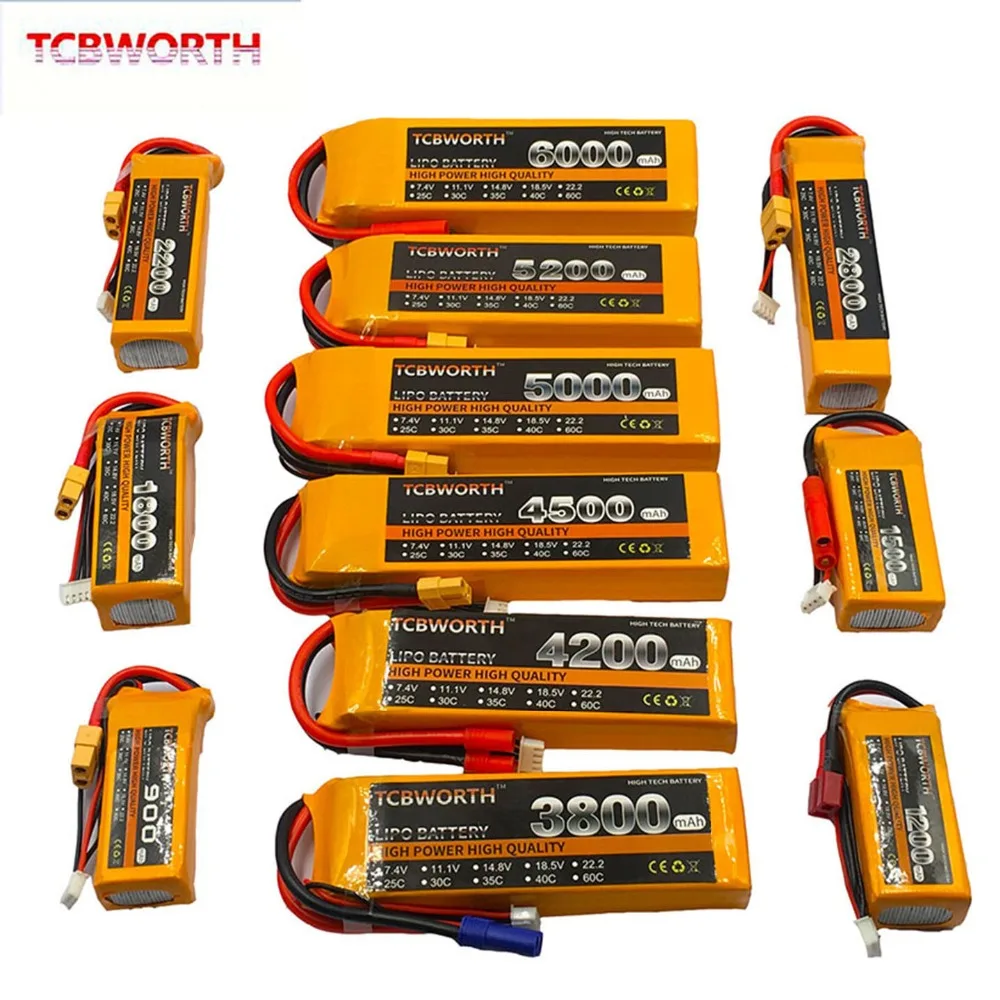

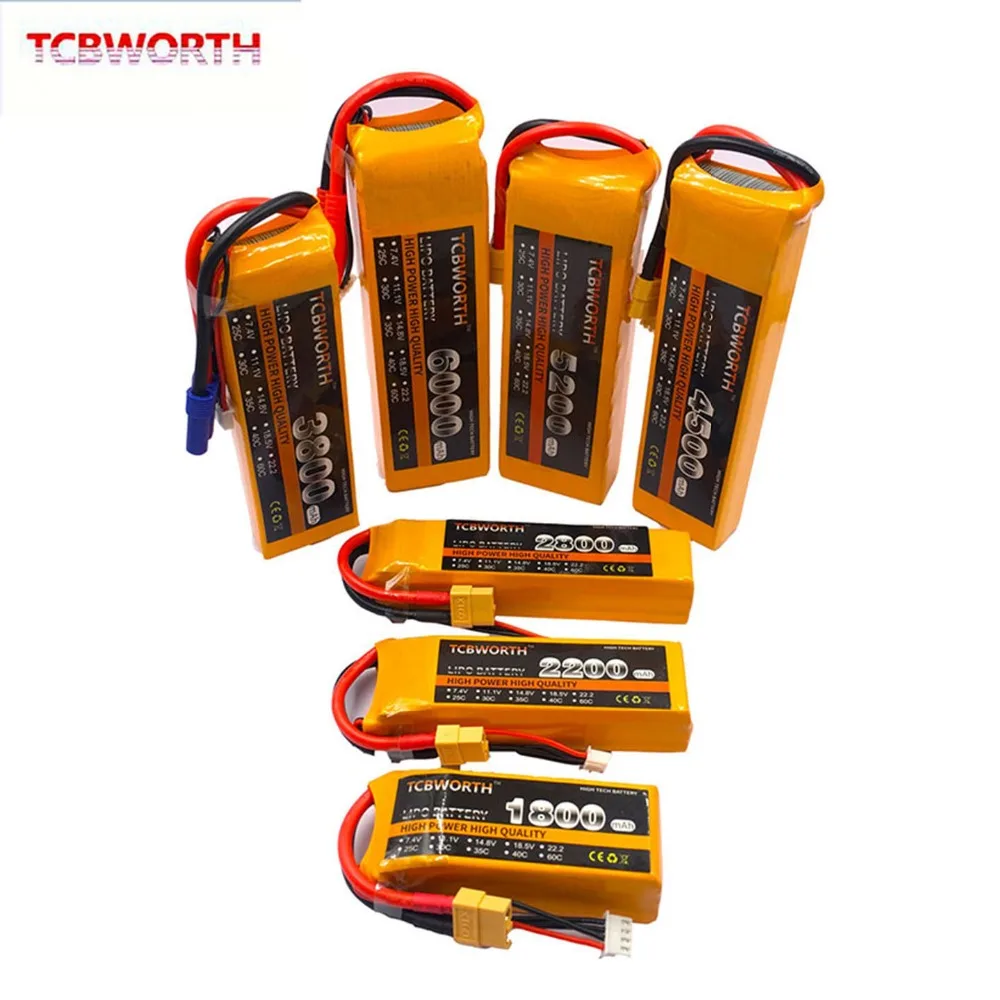

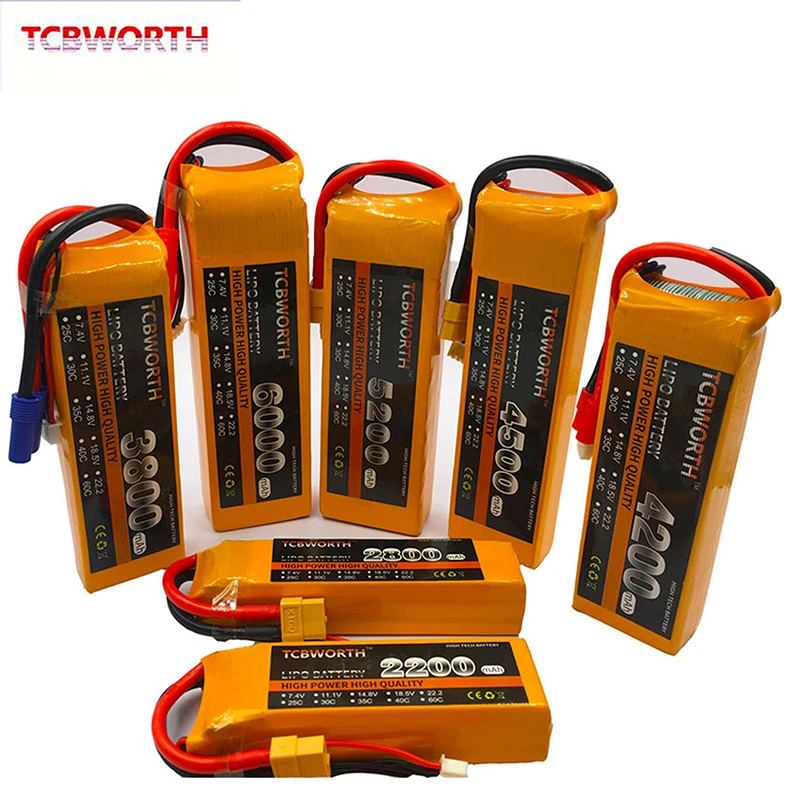

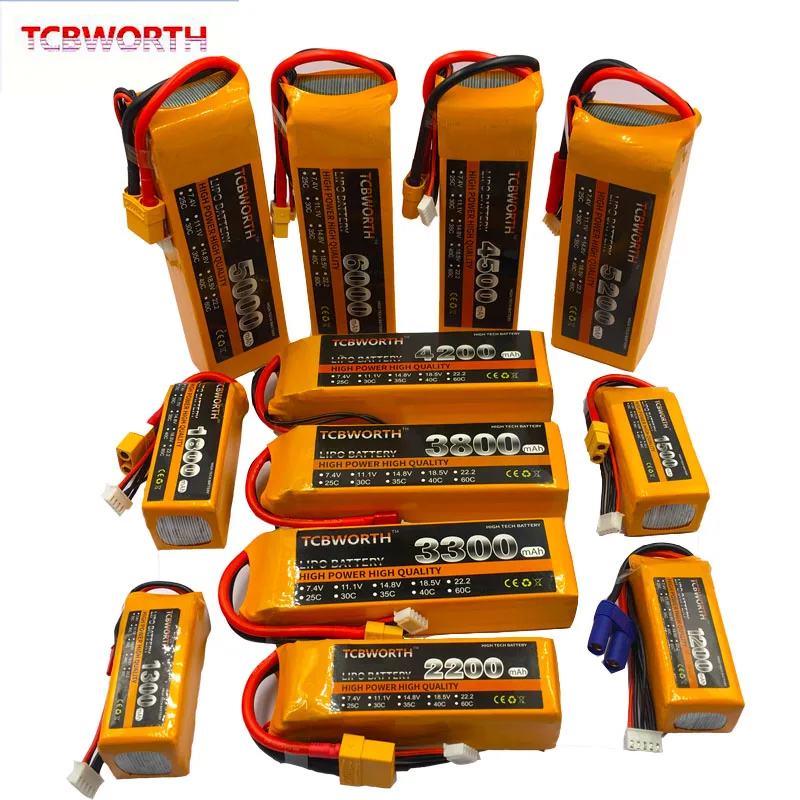

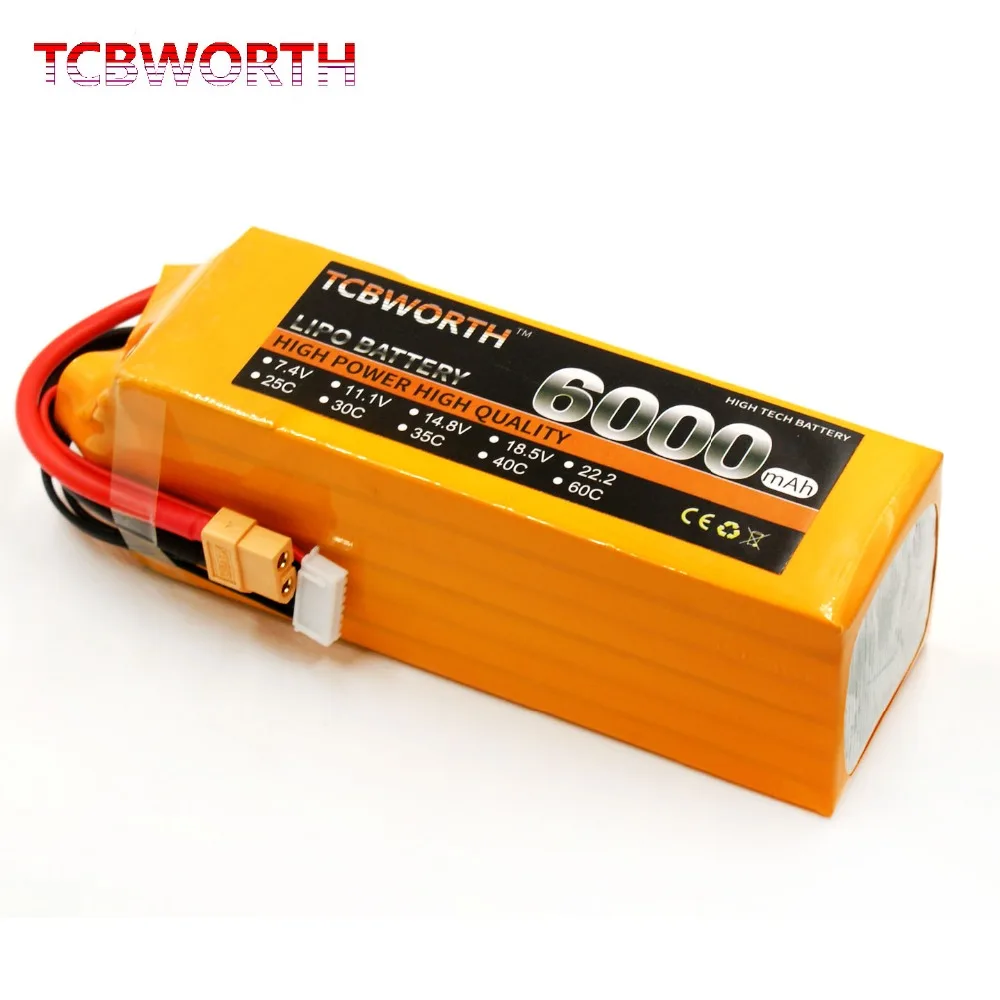

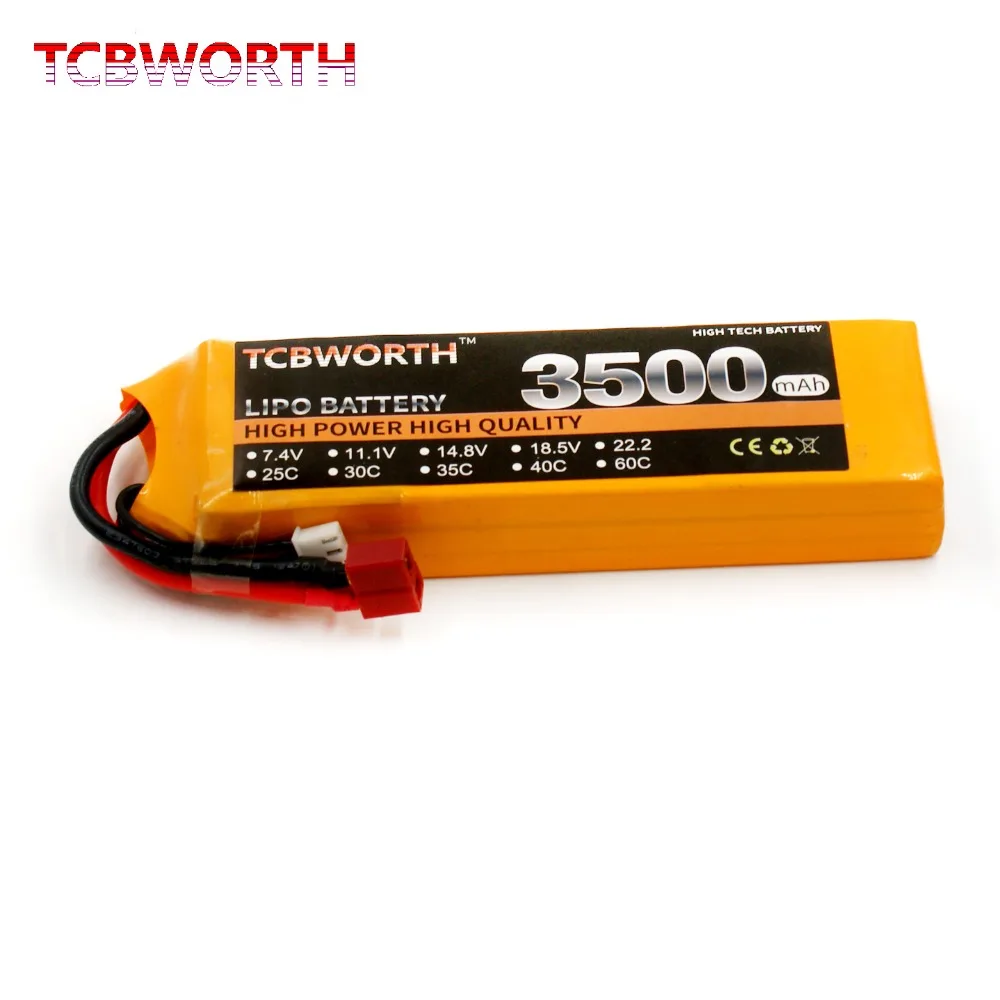

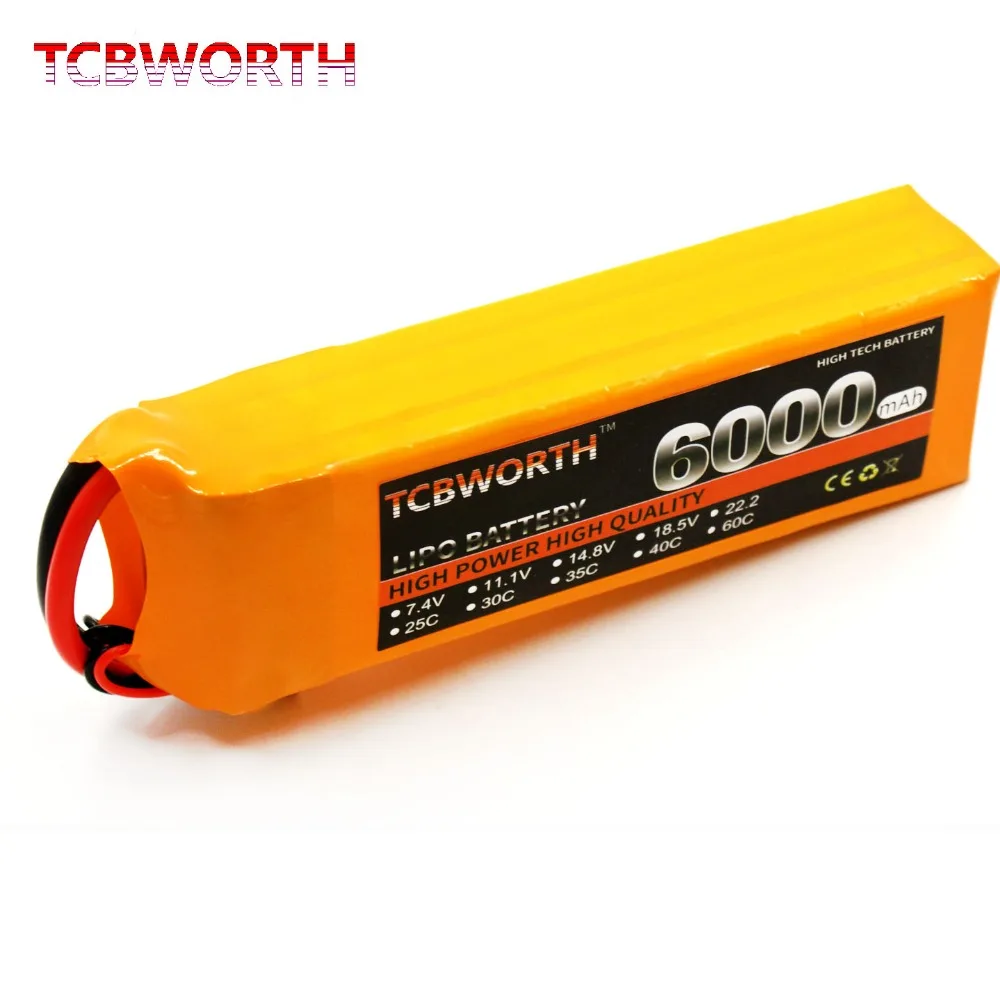

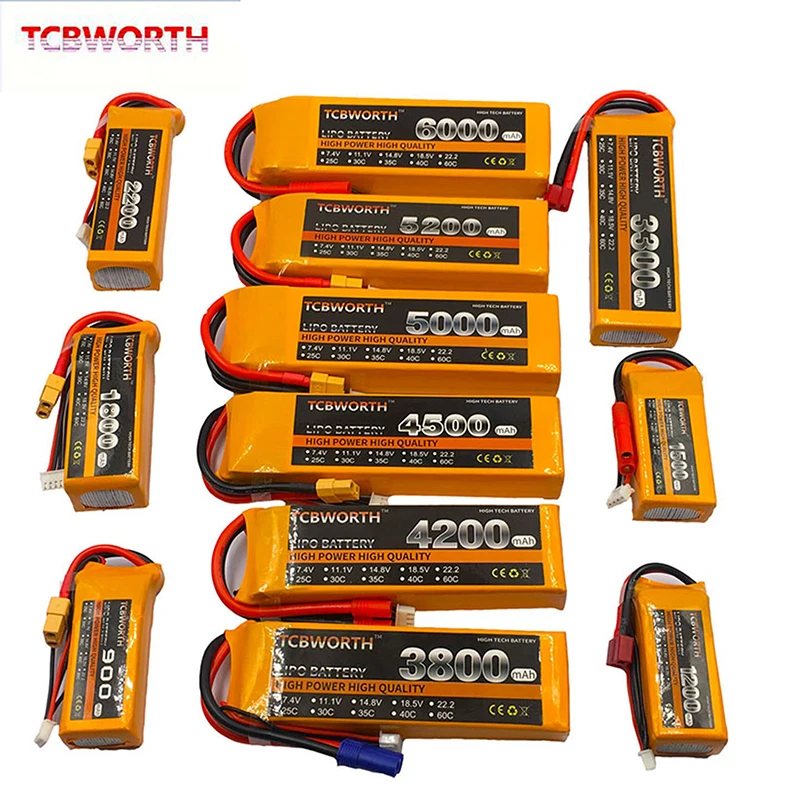

TCBWORTH RC LiPo Battery 2S 7.4V 3S 11.1V 4S 14.8V 6S 22.2V 1300 1500 1800 2200 2600 3300 3500 4000 4200 5200 6000mAh 25C 35C And 60C For RC Helicopter Airplane Quadrotor Car Boat Tank Toys.
Brand: TCBWORTH
Capacity: 1300 1500 1800 2200 2600 3300 3500 4000 4200 4500 5200 6000mAH
Continuous Discharge Rate: 25C 35C And 60C
Burst Rate: 50C 70C And 120C
Voltage Per Cell: 3.7V
Max Voltage Per Cell: 4.2V
Voltage Per Pack: 7.4V, 11.1V 14.8V 22.2V
Max Voltage Per Pack: 8.4V, 12.6V, 16.8V, 25.2V
Suggest Charge Rate:1-5C
Certificate:CE,ROHS,MSDS,UN38.3
Size And Weight:
| Type | Size(mm) | Weight(g) |

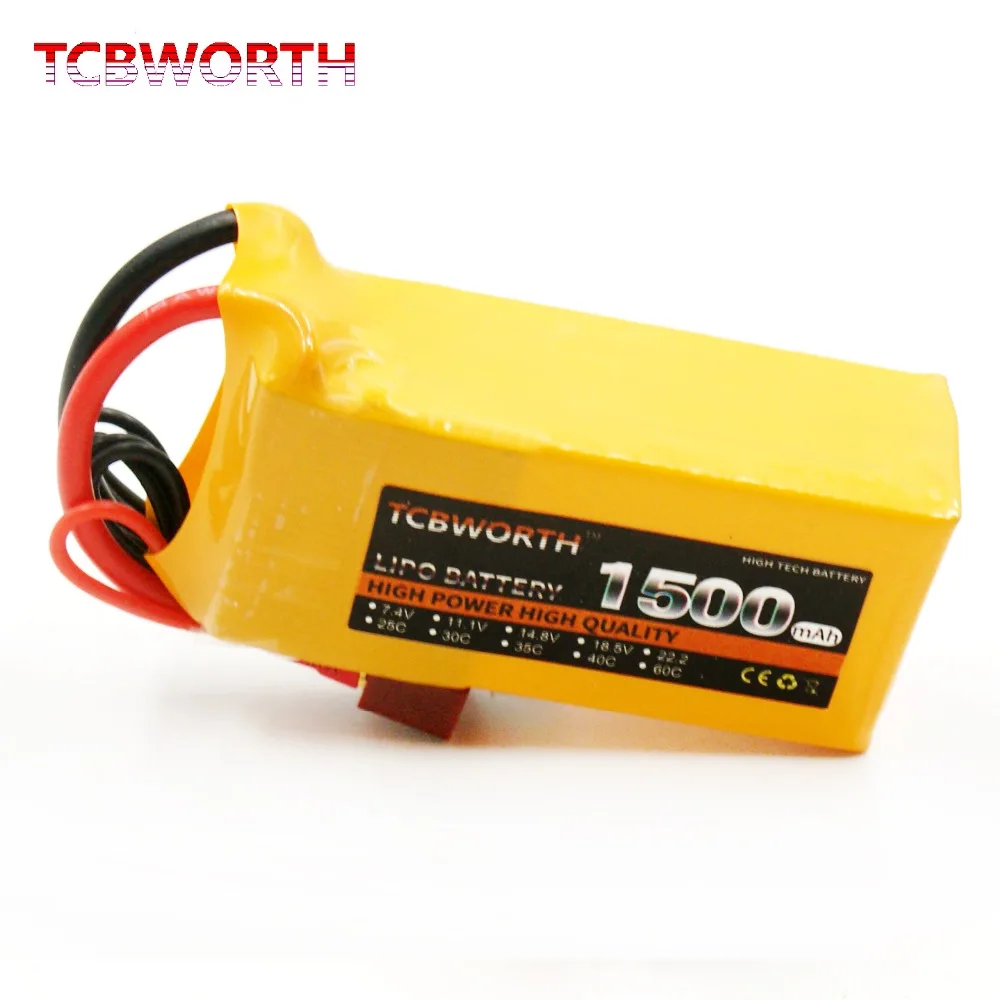

| 2S 7.4V 1500mAh 35C | 75*35*16.5 | 94 |

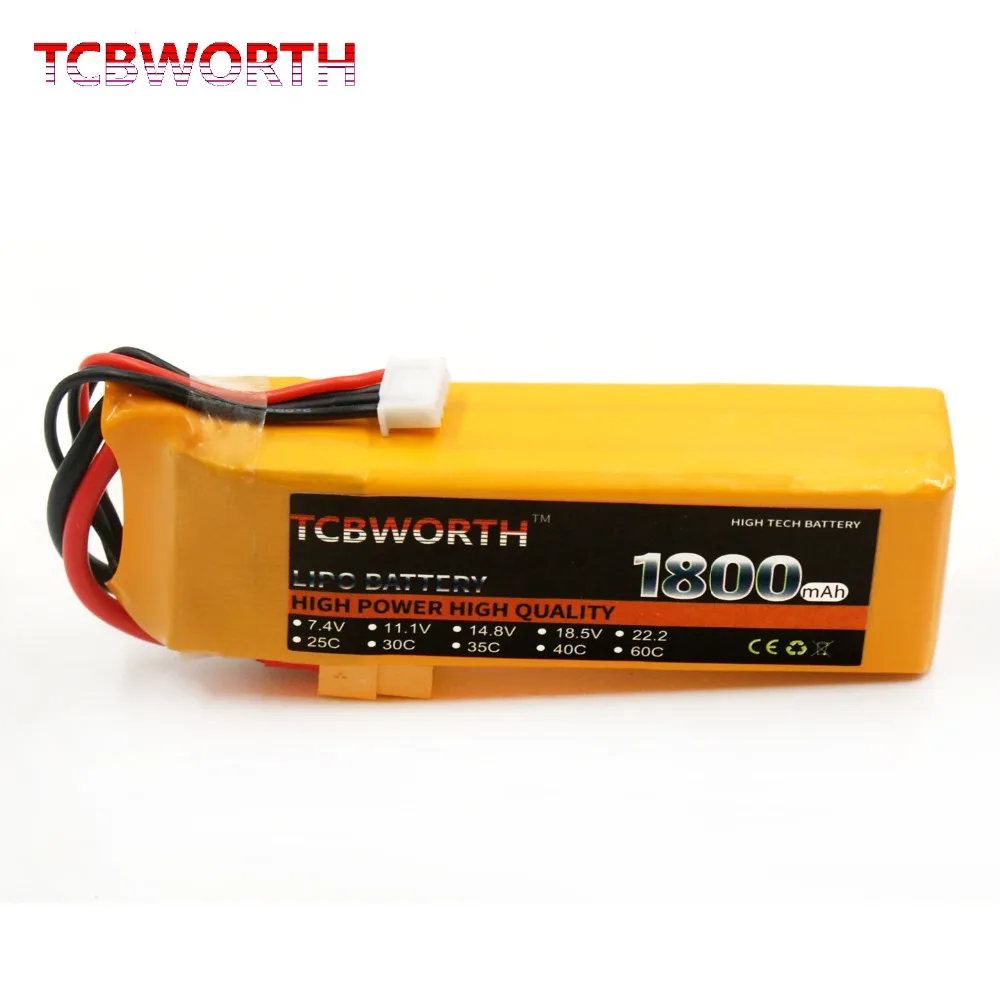

| 2S 7.4V 1800mAh 35C | 96*34*17.5 | 119 |

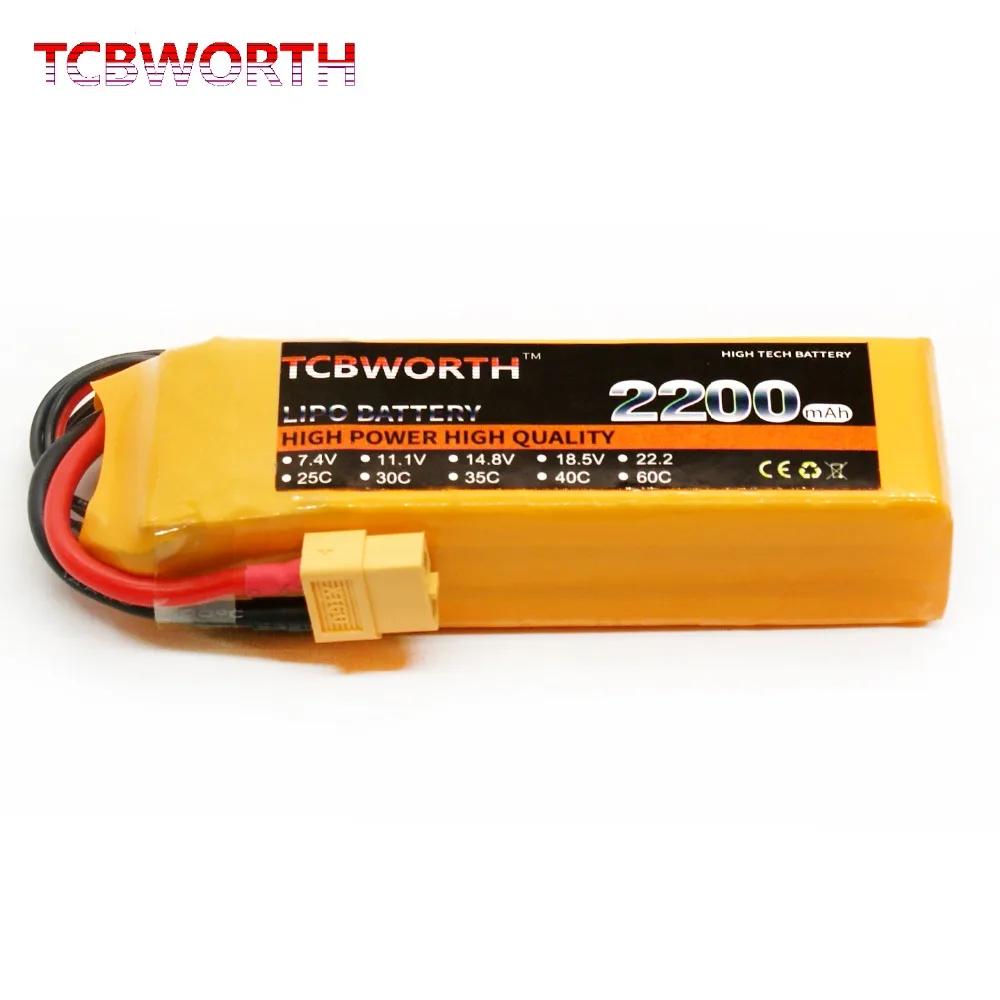

| 2S 7.4V 2200mAh 35C | 108x34x14.5 | 117 |

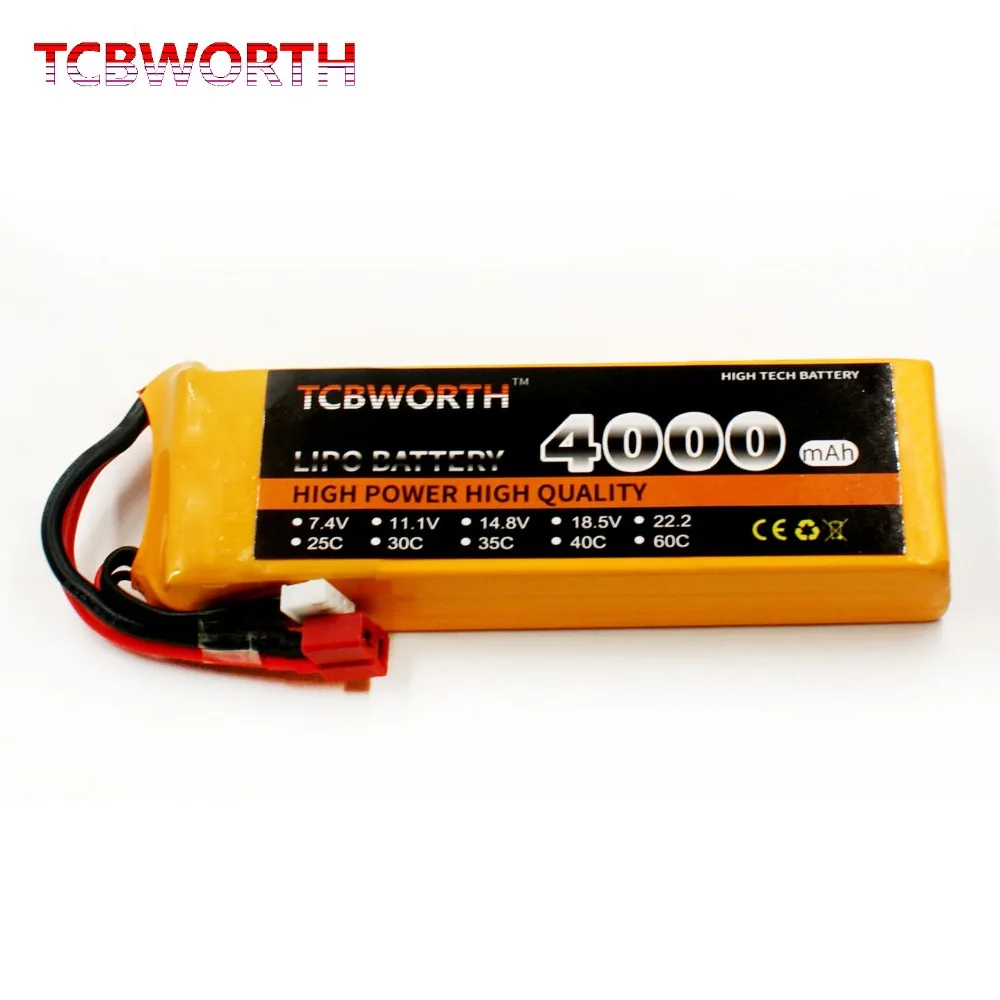

| 2S 7.4V 4000mAh 25C | 136*43*17.5 | 198 |
| 2S 7.4V 4000mAh 60C | 136*44*18 | 208 |
| 2S 7.4V 5200mAh 60C | 140*43*19.5 | 260 |
| 2S 7.4V 5200mAh 60C | 140*43*19.5 | 260 |

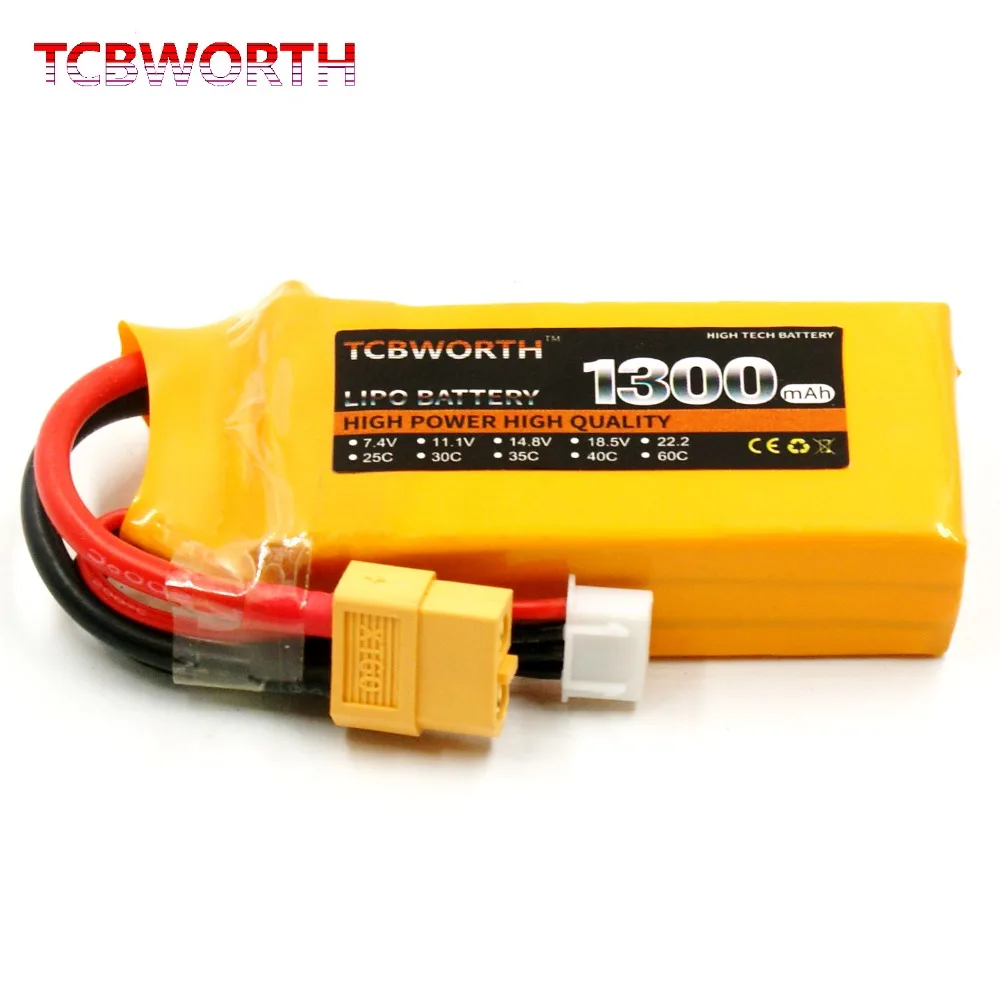

| 3S 11.1V 1300mAh 35C | 75*35*22 | 119 |
| 3S 11.1V 1300mAh 60C | 75*35*24 | 123 |
| 3S 11.1V 1500mAh 35C | 75*35*24.5 | 128 |
| 3S 11.1V 1500mAh 60C | 75*35*25 | 133 |
| 3S 11.1V 1800mAh 60C | 97*34*26.5 | 176 |
| 3S 11.1V 2200mAh 25C | 108x34x21 | 163 |
| 3S 11.1V 2200mAh 35C | 108x34x21.5 | 168 |
| 3S 11.1V 2200mAh 60C | 108x34x22 | 173 |

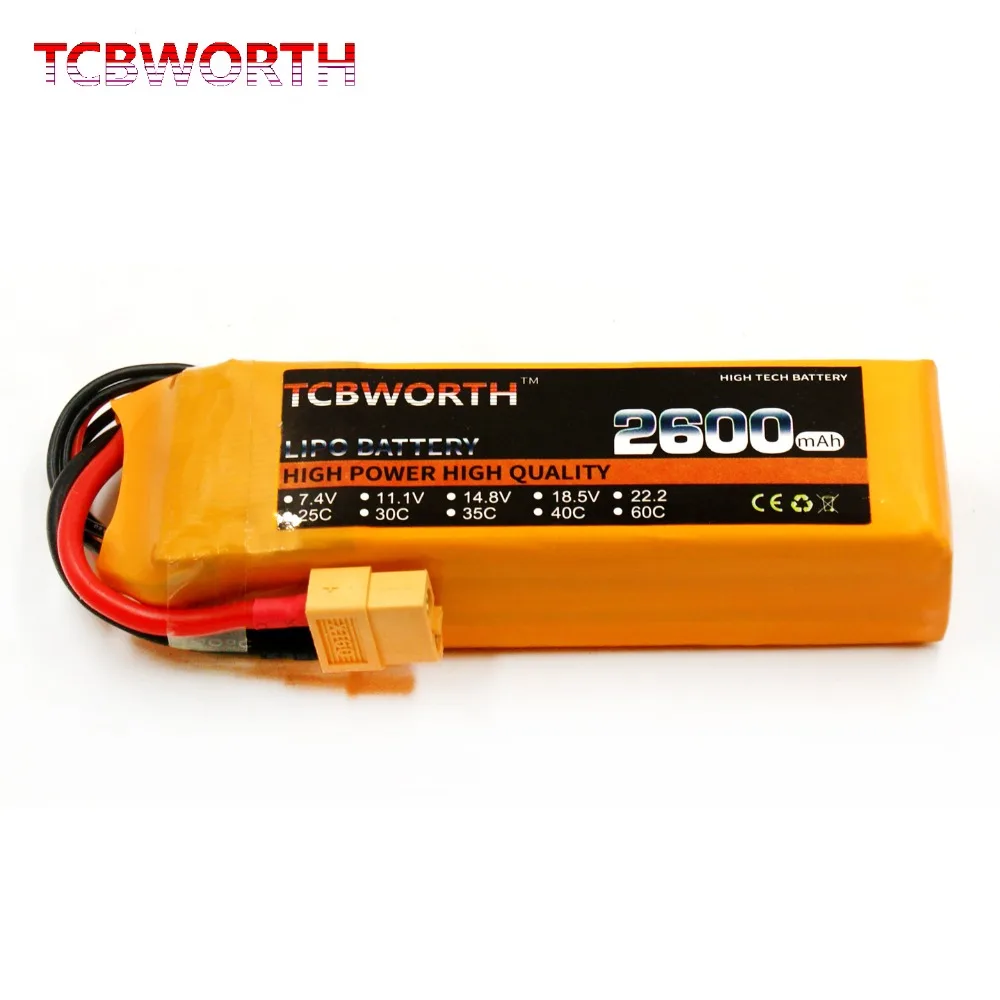

| 3S 11.1V 2600mAh 35C | 117*34*24 | 171 |

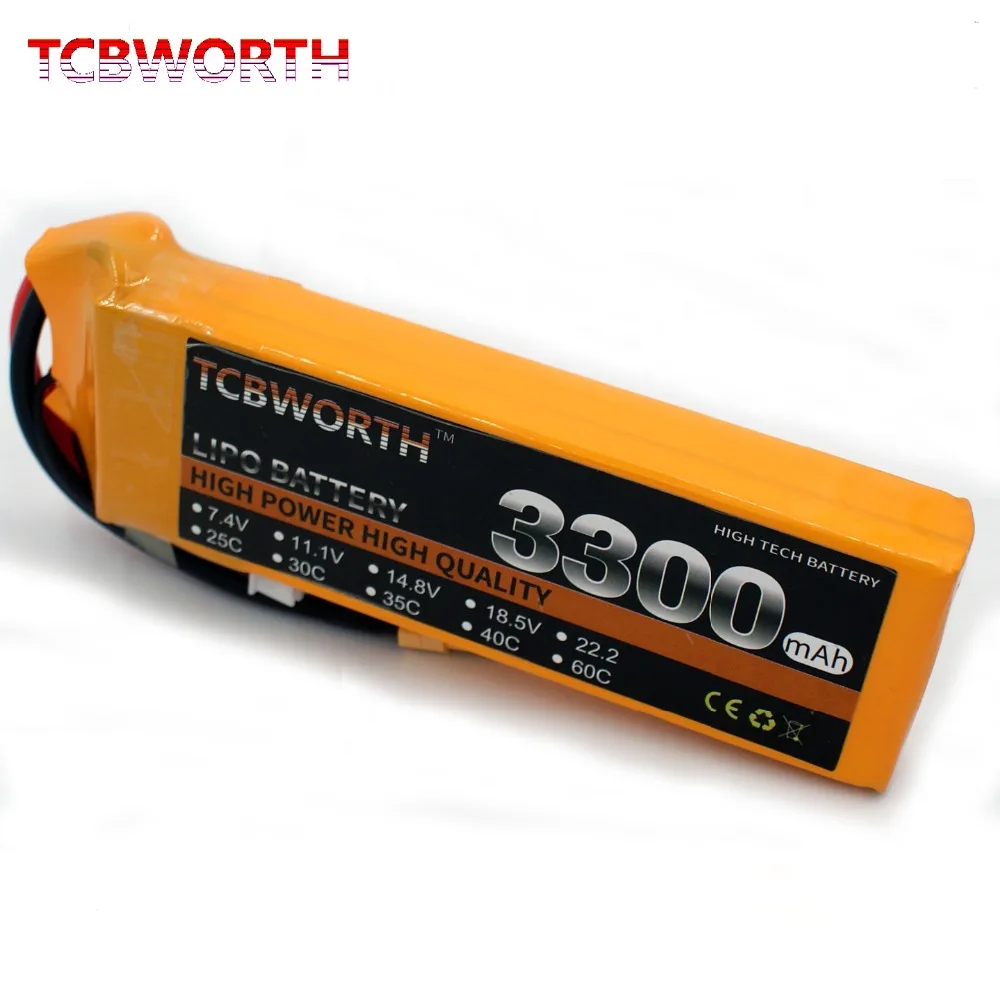

| 3S 11.1V 3300mAh 35C | 136*43*23 | 261 |

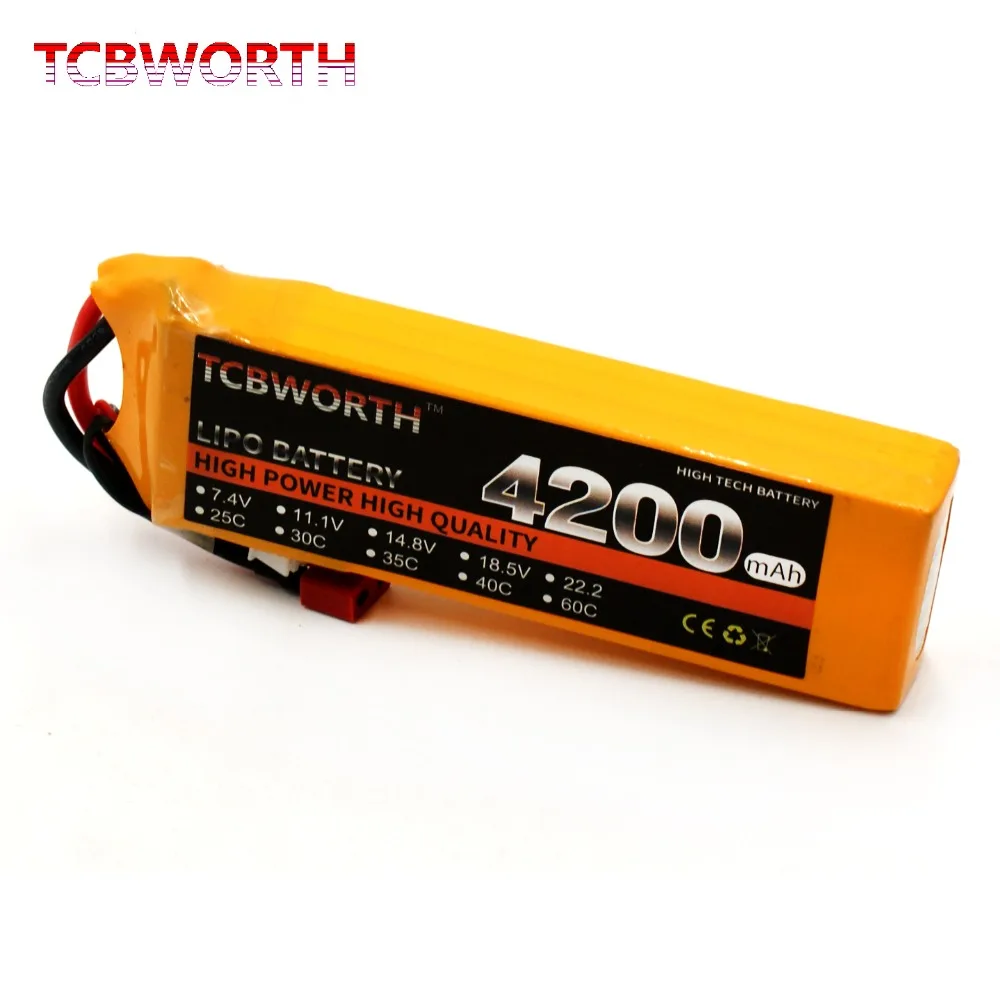

| 3S 11.1V 4200mAh 60C | 136*44*27 | 315 |
| 3S 11.1V 5200mAh 60C | 140*43*28.5 | 366 |
| 3S 11.1V 6000mAh 60C | 158*48*28 | 436 |
| 4S 14.8V 1800mAh 60C | 97*34*35 | 228 |
| 4S 14.8V 2200mAh 35C | 108x34x28.5 | 219 |
| 4S 14.8V 2200mAh 60C | 108x34x29 | 224 |
| 4S 14.8V 3300mAh 60C | 136*43*31.5 | 343 |
| 4S 14.8V 4200mAh 60C | 136*44*35 | 404 |
| 4S 14.8V 5200mAh 35C | 139*43*37 | 467 |
| 4S 14.8V 5200mAh 60C | 140*43*37.5 | 472 |
| 4S 14.8V 6000mAh 60C | 158*48*37.5 | 571 |
| 6S 22.2V 5200mAh 60C | 140*43*55.5 | 684 |
| 6S 22.2V 6000mAh 60C | 158*48*57 | 843 |
Buyer Reading:

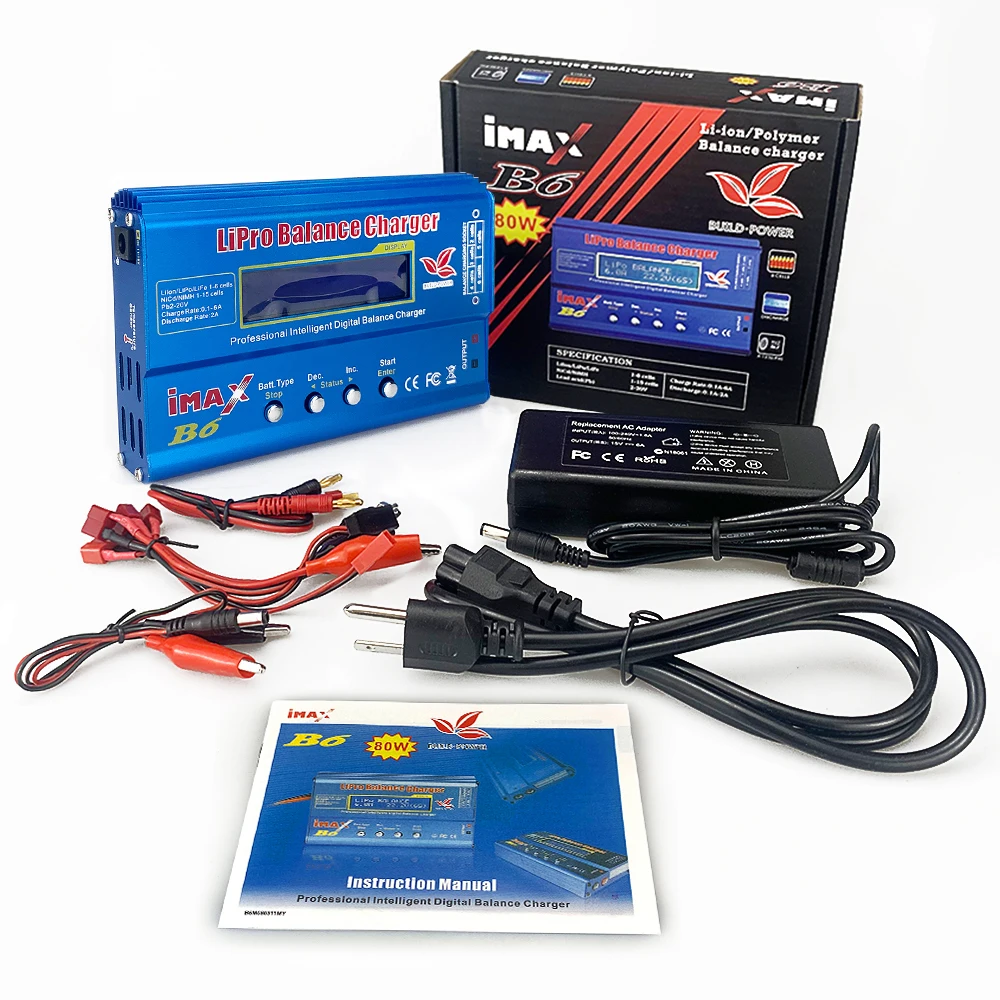

1, Please charge full after received battery before use , don’t overcharge, 1 piece show 4.2V is charge full . It is best choose charger with preventing overcharge, you can also buy B6 charger i our shop
2, Because the battery of shipping time is long, sometimes the battery voltage will automatic drop, there will be voltage difference between each battery cell , please use the B6 charger choosingLiPo STORAGEcharging mode, the voltage will be balanced
3, Battery full charge more than 48 hours but no use, please discharge to 3.85V, Otherwise it’s easy to get gas and damage the battery
4, If long time don’t use battery, it should be tested every month and do a discharge. The voltage should be maintained between 3.8V and 3.9V when stored
5, During normal use battery , please try to control the voltage from 3.5V to 4.2V, it is best with low voltage alarm

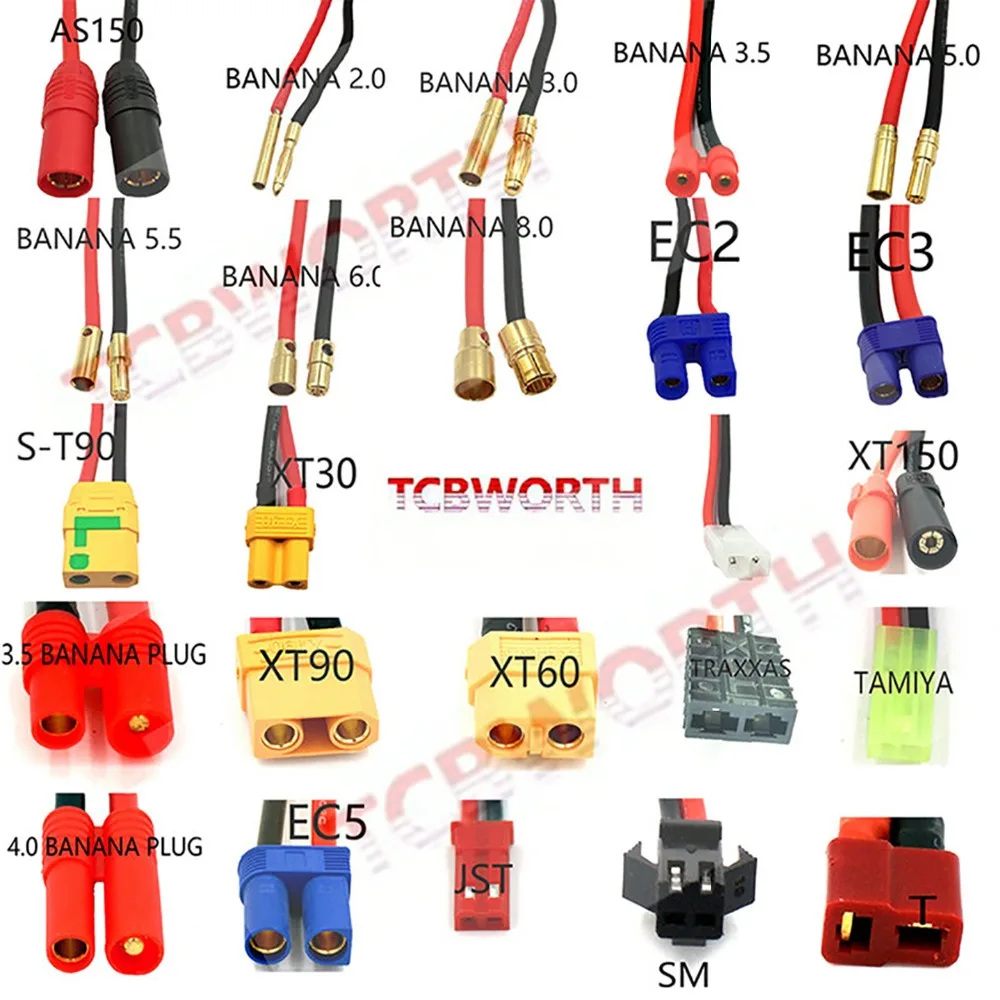

6, There will be tiny errors in the size of the battery . please make sure before buying, Battery size tolerance range is plus or minus 4mm7, We have different kinds of plug, if you need other plug, please leave a message in the order
8, If you have any questions, please contact with our customer service first, don’t open dispute, we will try our best to providehelp for you
